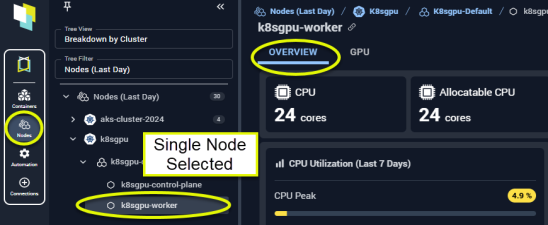

Figure: Locating the Node Overview

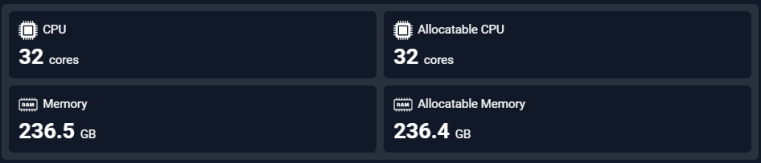

Summary Card
Click any of the listed settings below to see a brief description. Complete descriptions of each setting are provided in the Nodes Tab. Resource configuration details are listed on this card.
Figure: Summary Card

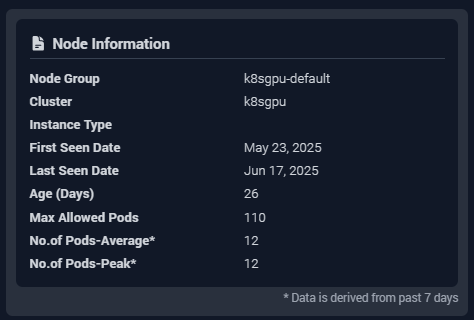

Node Information
Identifying details and key metrics are displayed in the card at the top of the page.
Figure: Node Information
- Missing data is indicated with a dash (-).
- The data is derived from the past 7 days of history.

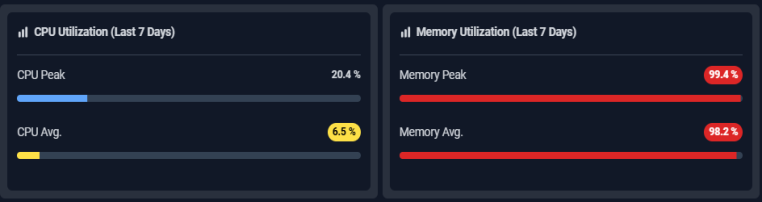

Utilization Summary
The next 2 cards summarize potential resource risks for the node, and the containers running on the node.
Figure: Utilization Details

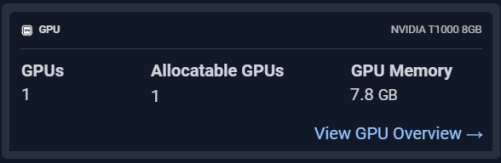

GPU Summary
This card summarizes the GPU allocation and for the selected node. This card is only displayed if GPU resources are availble on the selected instance type. A hyperlink at the bottom of the card takes you to the GPU page.
Figure: GPU Summary
Number of Pods and Utilization Charts
This chart summarizes the number of pods that have been running on this node. You can open a modal view to see more details. See AI Analysis Details Table for details on using the options in the modal view. Slide Show: Number of Pods Chart (Click left/right arrows to see the other slides.)Utilization Charts
The last section provides utilization charts that show hourly min/max and sustained activity for the selected node. You can also expand any chart to the modal view and select other metrics for review. See AI Analysis Details Table for details on using these charts to review workload data.- CPU Utilization (%)
- Memory Utilization (%)
- Working Set Memory Utilization (%)
- GPU Utilization (%)
- GPU Memory Utilization (%)
- No. of Pods
